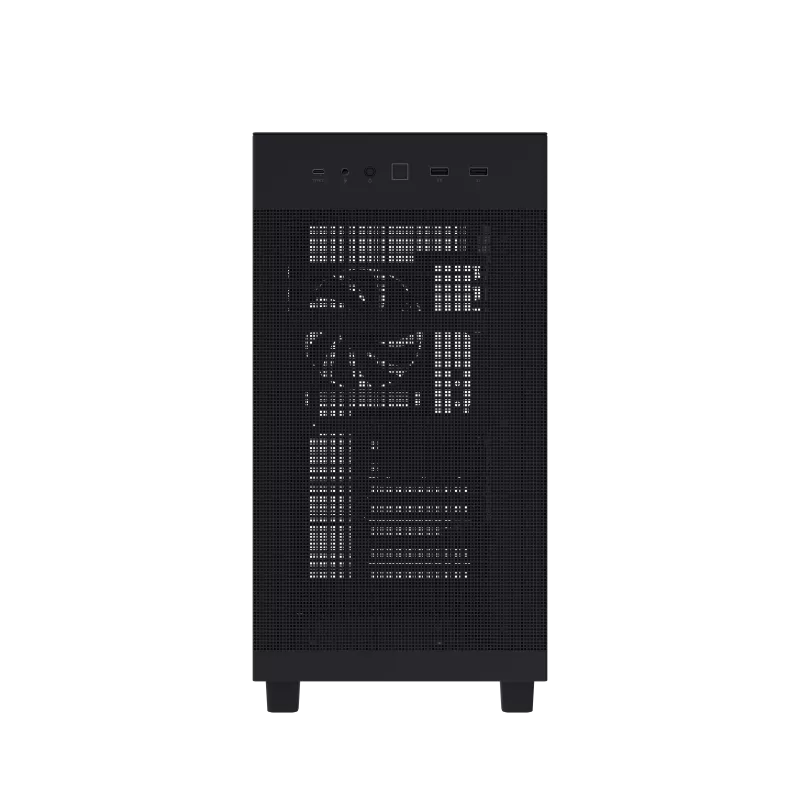

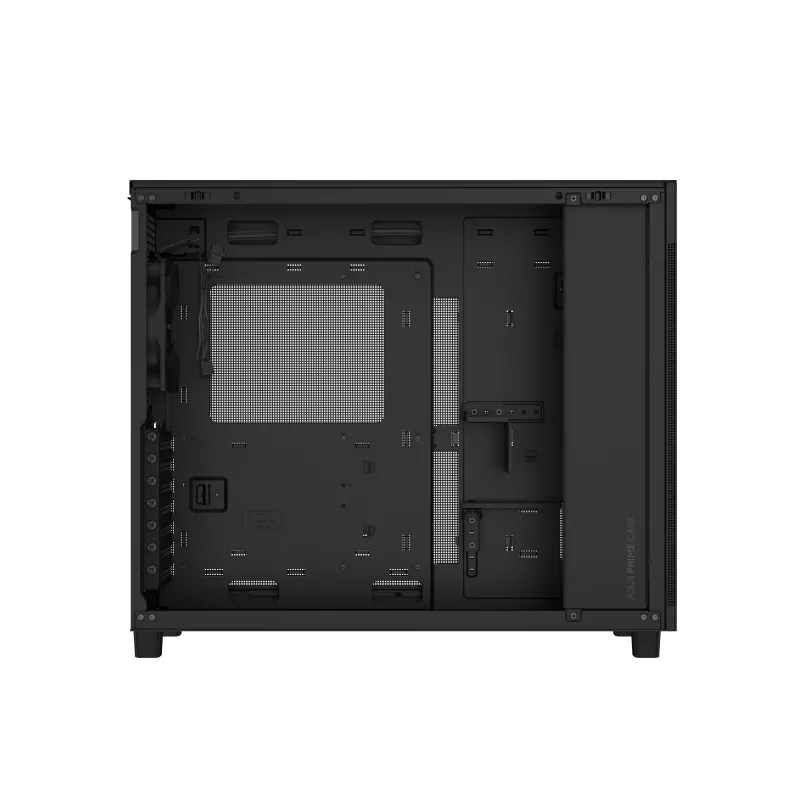

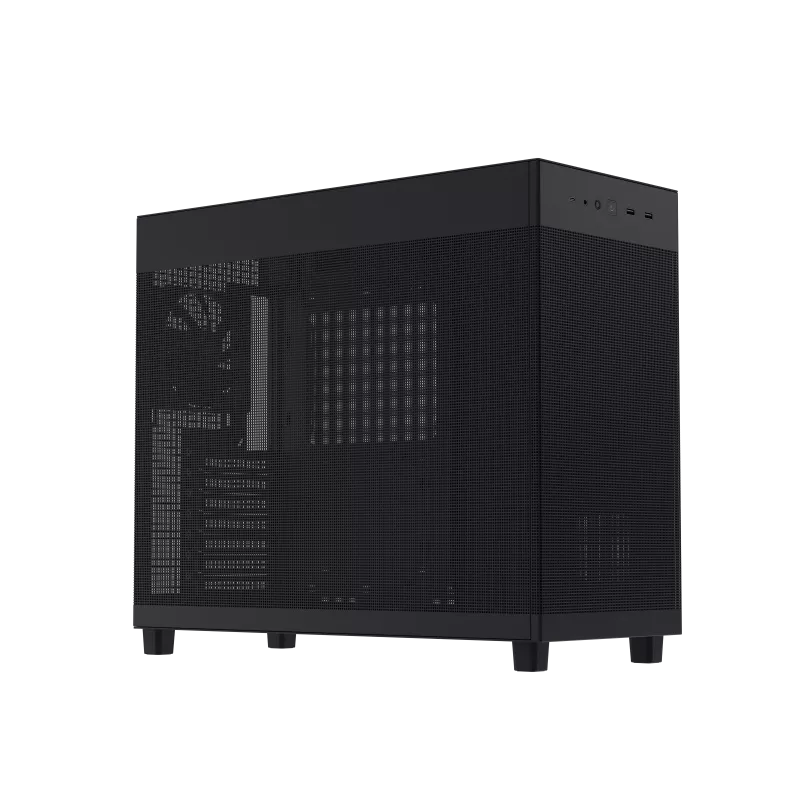

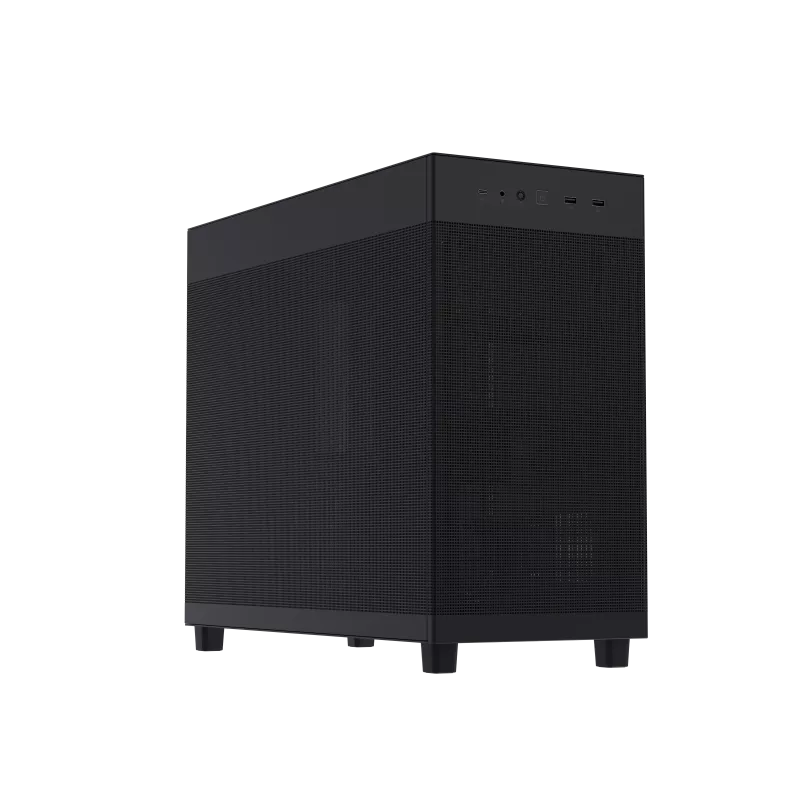

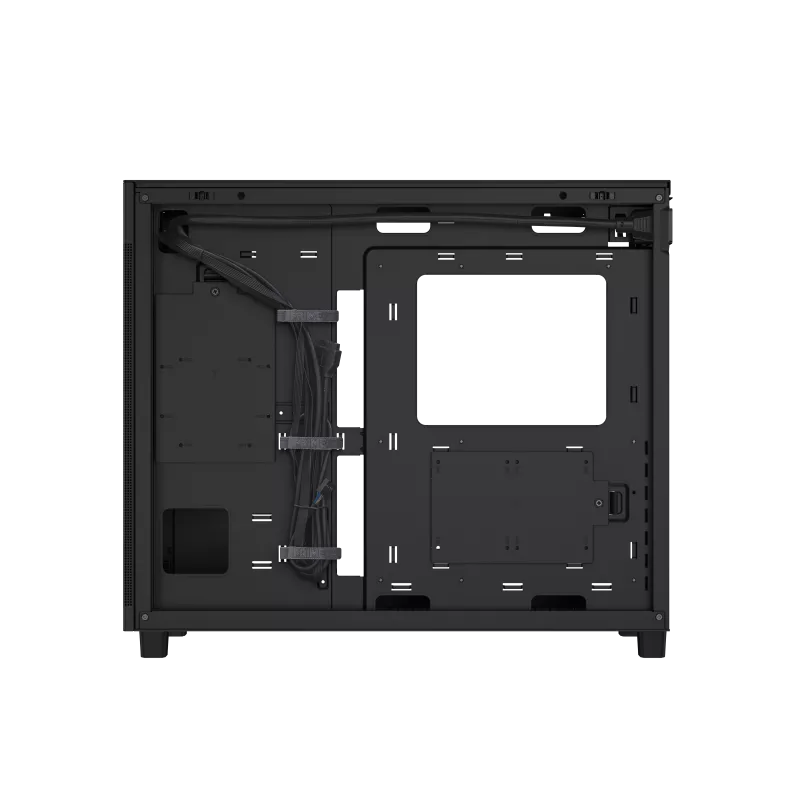

The ASUS Prime AP303

The ASUS Prime AP303 is a compact 44-liter ATX case with support for graphics cards up to 360mm long, 360mm radiators up to 60mm thick, and ATX PSUs up to 180mm long.

• Compact Size with Maximal Capacity: 44-liter footprint supports up to 360mm graphics cards, up to 360mm radiators (60mm max thickness), up to 180mm ATX PSUs

• Enhanced Rigidity for Graphics Cards: Added bracket supports GeForce RTX™ 50 Series graphics cards from 310mm to 360mm long, reducing sagging and movement

• Power Cable for High-End Systems: UL-certified power cable delivers 15 amps to ensure stable operation

• Optimized for Cooling: Support for up to 360mm radiators and up to seven fans handles any thermal scenario

• Front Panel USB Type-C® Support: A 20Gbps USB Type-C port enables high-speed data transfer speeds

ASUS PRIME AP303 Tempered Glass Black ATX Midi-Tower Gaming PC Case 90DC00V0-B39010

The ASUS Prime AP303 is a compact 44-liter ATX case with support for graphics cards up to 360mm long, 360mm radiators up to 60mm thick, and ATX PSUs up to 180mm long.

Features:

•  Compact Size with Maximal Capacity: 44-liter footprint supports up to 360mm graphics cards, up to 360mm radiators (60mm max thickness), up to 180mm ATX PSUs

•  Enhanced Rigidity for Graphics Cards: Added bracket supports GeForce RTX™ 50 Series graphics cards from 310mm to 360mm long, reducing sagging and movement

•  Power Cable for High-End Systems: UL-certified power cable delivers 15 amps to ensure stable operation

•  Optimized for Cooling: Support for up to 360mm radiators and up to seven fans handles any thermal scenario

•  Front Panel USB Type-C® Support: A 20Gbps USB Type-C port enables high-speed data transfer speeds

• Technical Specifications:

  Motherboard Support
  Supported Motherboards Mini-ITX
  Micro-ATX
  ATX

  Drive Bays
  Drive Bay Configuration 1 x 2.5"/3.5" Combo Bay
  2 x 2.5" Bay

  Expansion Slots
  Slots 7

  Front I/O Port
  Front Connectivity 1 x USB 3.2 Gen 2x2 Type C
  2 x USB 3.2 Gen1
  1 x Headphone / Microphone

  Radiator Support (Top)
  Top Radiator Support 360 mm
  280 mm
  240 mm
  140 mm
  120 mm

  Radiator Support (Rear)
  Rear Radiator Support 120 mm

  Cooling Support (Top)
  Top Fan Support 3 x 140 mm
  3 x 120 mm

  Cooling Support (Rear)
  Rear Fan Support 1 x 120 mm

  Pre-installed Fans (Rear)
  Included Fans 1 x 120 mm

  Maximum CPU Cooler Height
  CPU Cooler Clearance 165 mm

  Maximum GPU Length
  GPU Clearance 360 mm

  Maximum PSU Length
  PSU Clearance 180 mm

  Removable Dust Filters
  Dust Filter Locations Bottom

  Maximum Cable Management Space
  Cable Clearance 34 mm

  Dimensions
  Case Dimensions 215 × 425 × 485 mm (W × H × D)

  Weight
  Mesh Edition Weight 6.8 kg
  Tempered Glass Edition Weight 7.8 kg
